Quirky and practical, ideal for a traditional or contemporary property
Cleverly combining simplicity with practicality, our timber pivot windows are designed to allow easy and safe maintenance. The flush-fitting hinge provides 180-degree rotation, allowing the external glass and frame to be cleaned from the inside, making the window particularly suited for use in high-rise applications or inaccessible spaces.
As with our casement and tilt-and-turn window designs, multipoint locking is distributed around the frame for enhanced security. For secure night ventilation, there is an optional handle that can be incorporated into the timber pivot window design. High levels of design customisation can be achieved with many glazing, layout and finishing options. In addition, we can manufacture to bespoke project requirements, as our innovative pivot system will accommodate opening windows of irregular shapes.

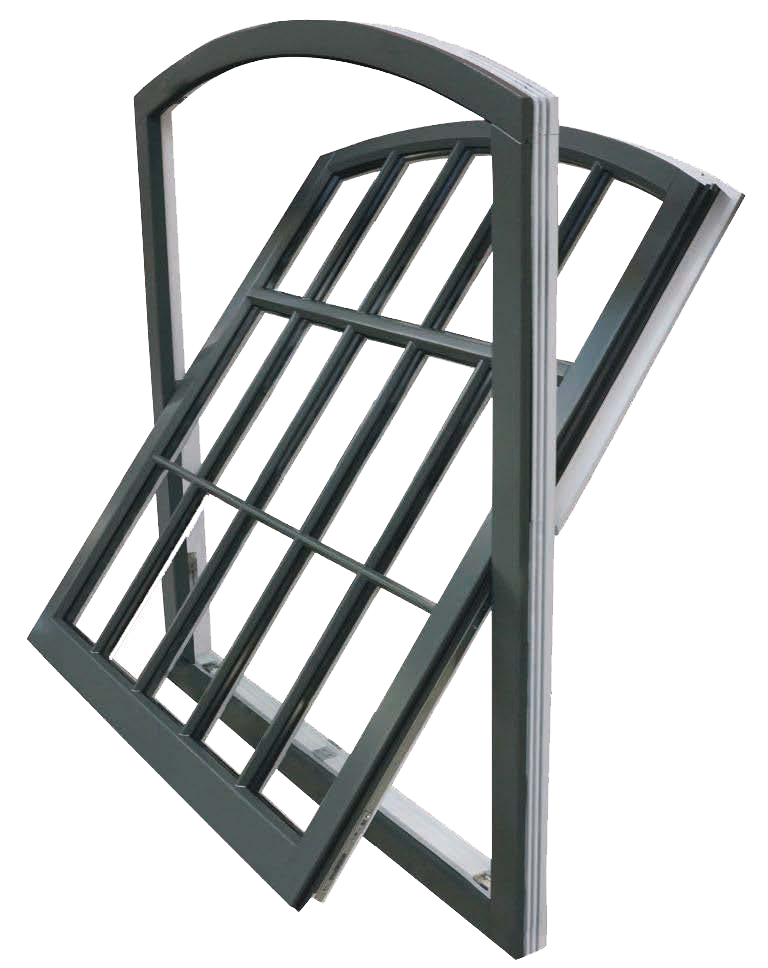

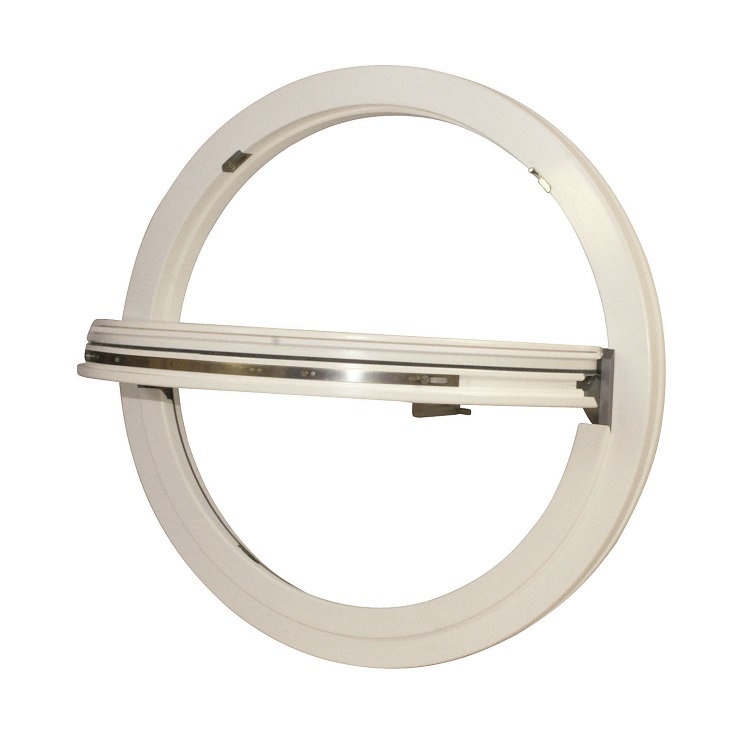

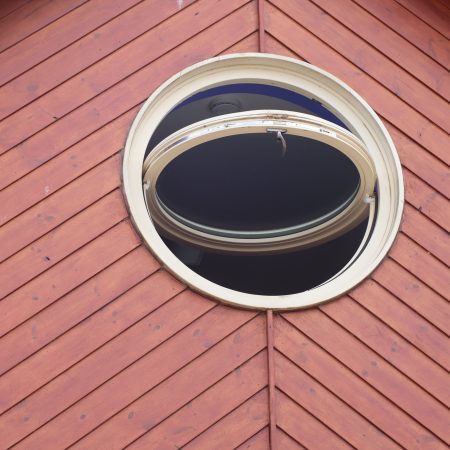

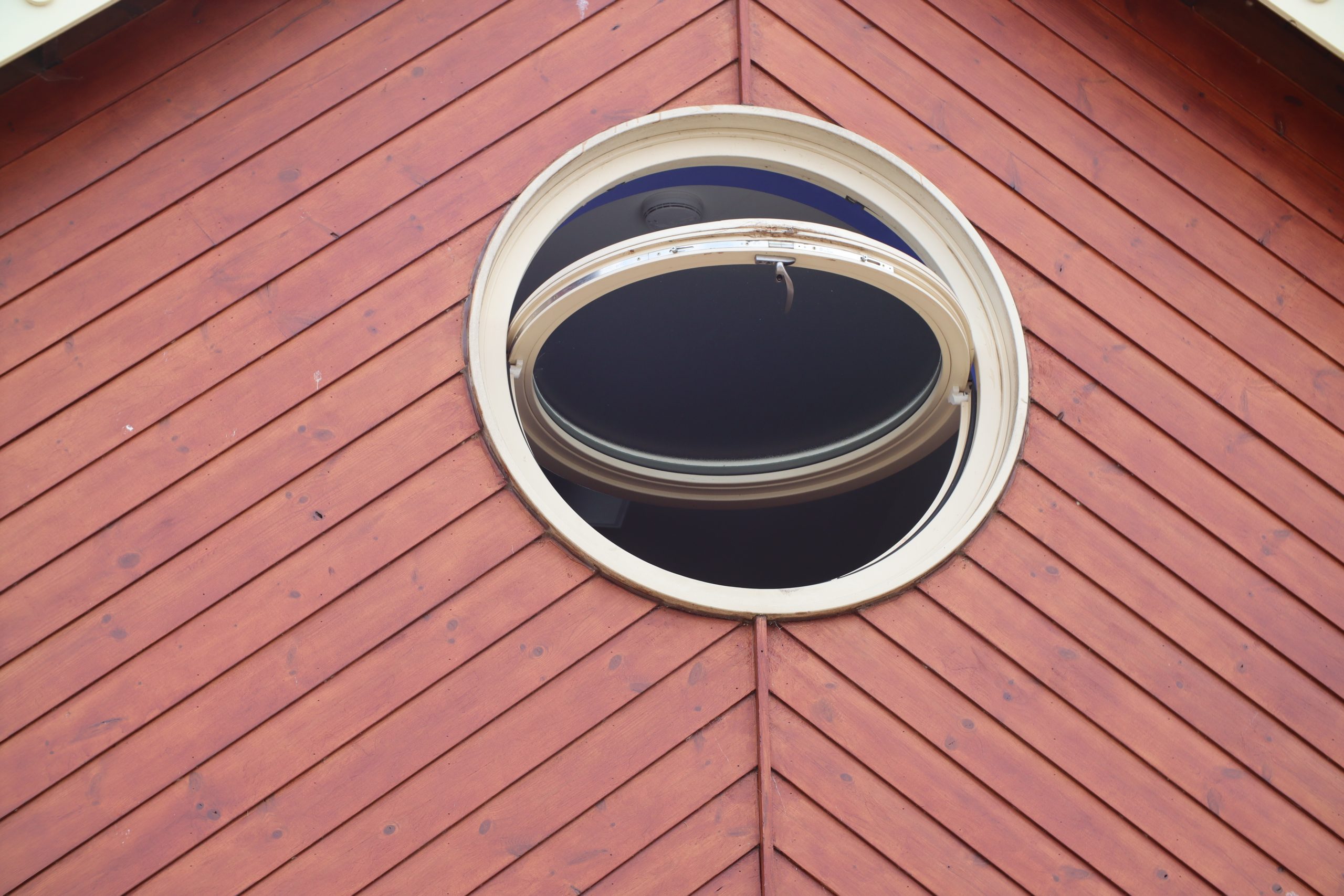

Our timber pivot window offers a simple opening mechanism that enables the window to turn 180 degrees and enables easy cleaning of the window from within the property. Extremely robust, the system will support a range of shapes and sizes, where it is possible to have a single sash measuring up to 23 x 2.2m and weighing up to 200kg.
Architects and Specifiers find us on SpecifiedBy
Discover the benefits
Weather rating
Tested to exposure category 2000 – the highest classification
Thermal performance
A rated as standard; Triple glazed options available
Sustainability
Environmentally friendly designs, materials and processes
Acoustic performance
Great performance as standard and extensive test data to guide specification for optional enhanced acoustic performance
Astragal bars
Available in a range of widths and styles
Draught proofing (Wind load)
Dual seal design provides excellent draught proofing
Customise and make your new windows unique
Our ranges and options make it possible for you to achieve the exact look and feel to meet your property style and desired outcome.
Case Studies
See the projects where this product has been installed.
CASE STUDY

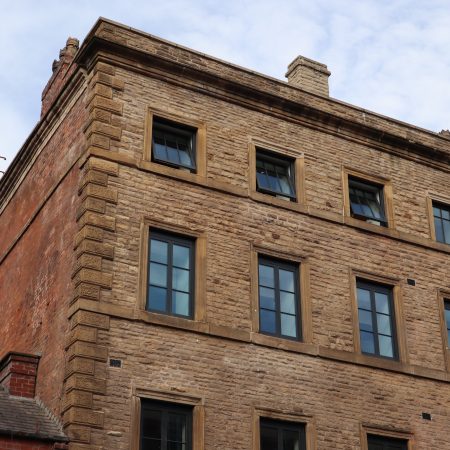

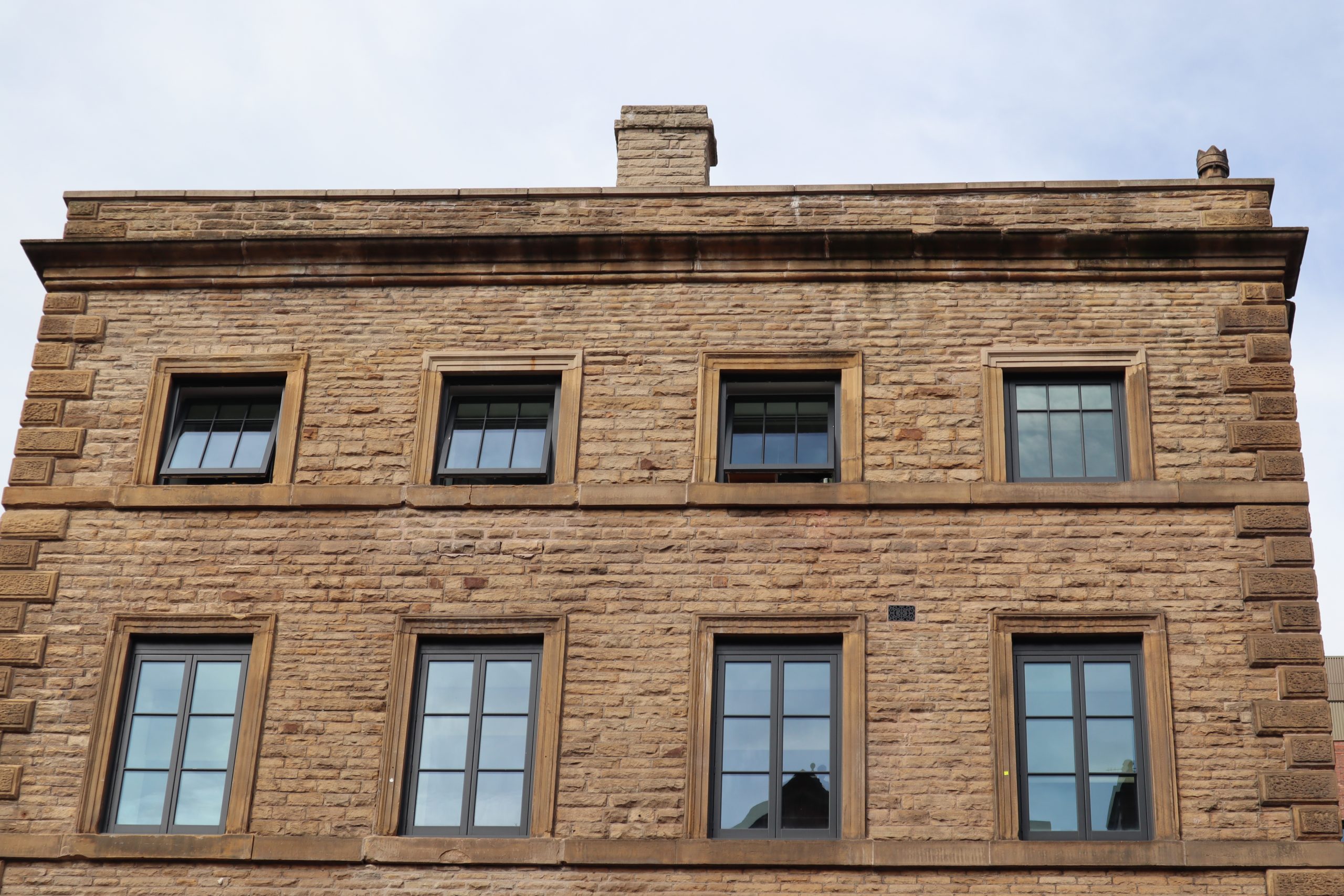

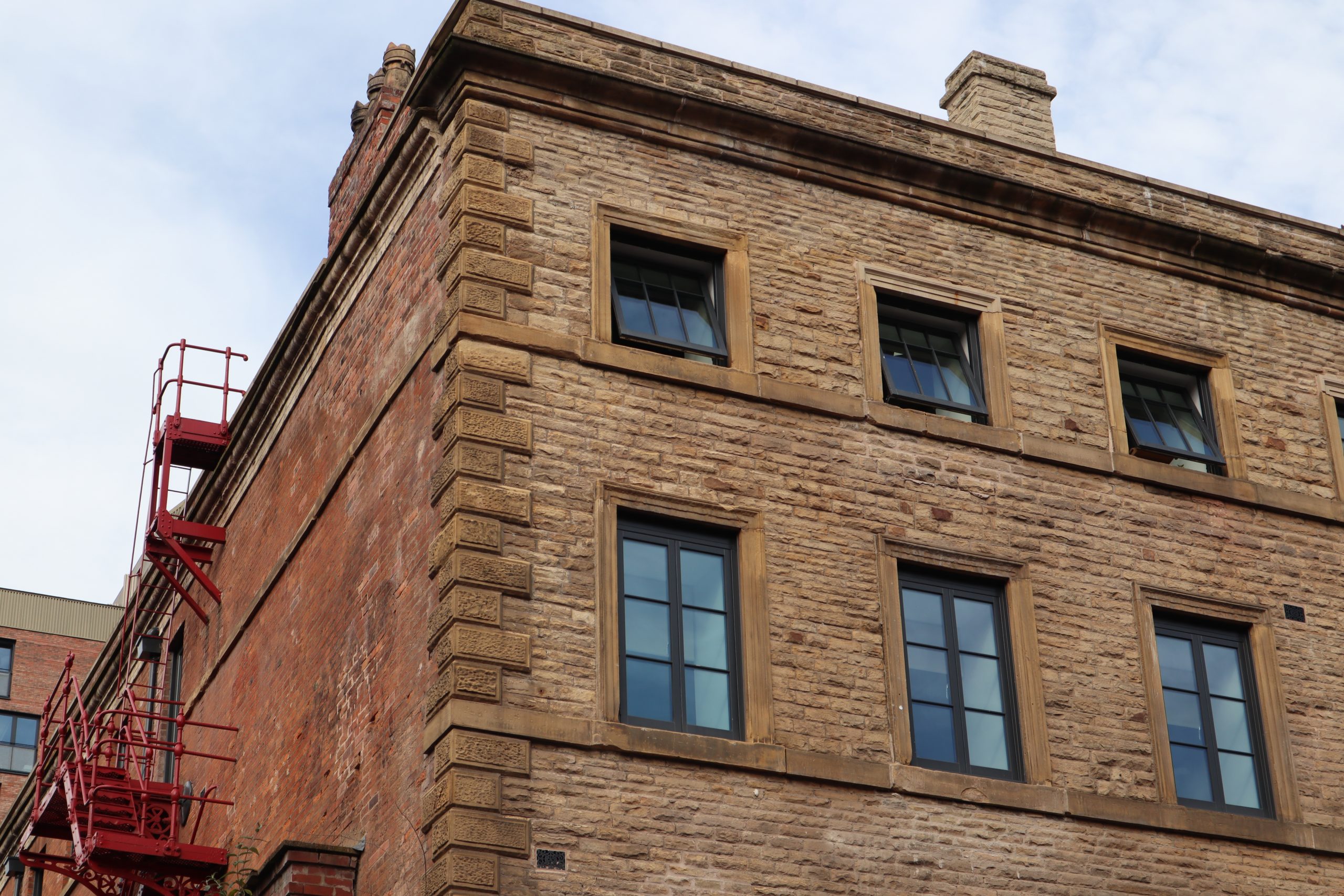

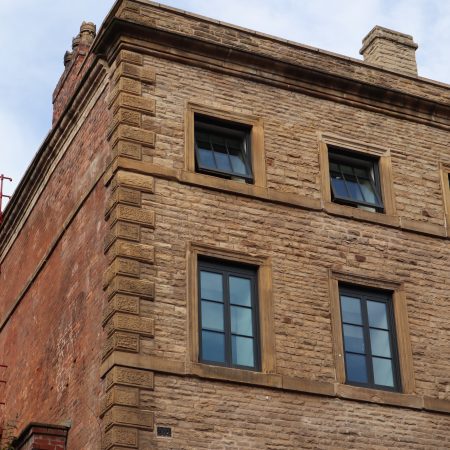

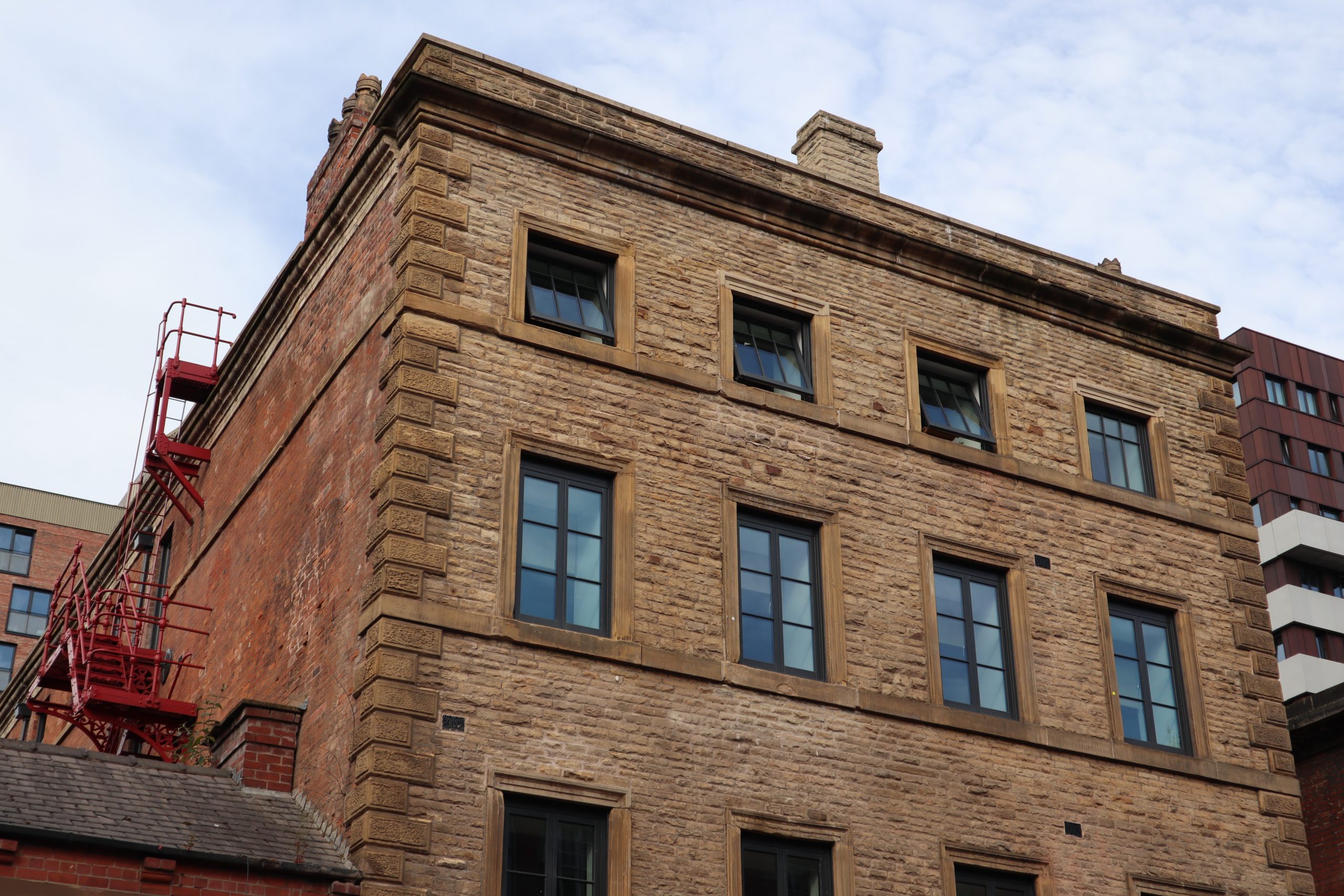

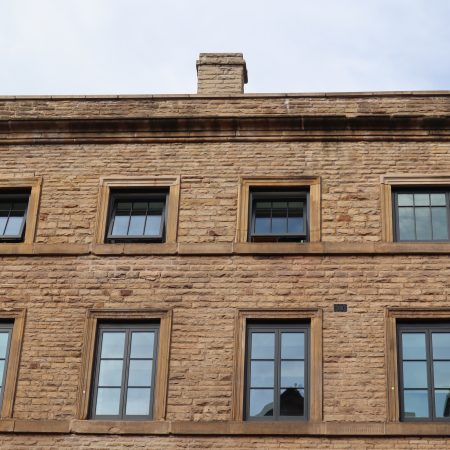

Cool Kampus project cottons on to timber windows & doors – Minto & Turner Building
CASE STUDY
Green windows for a “green house” – River House is a lesson in sustainability
CASE STUDY

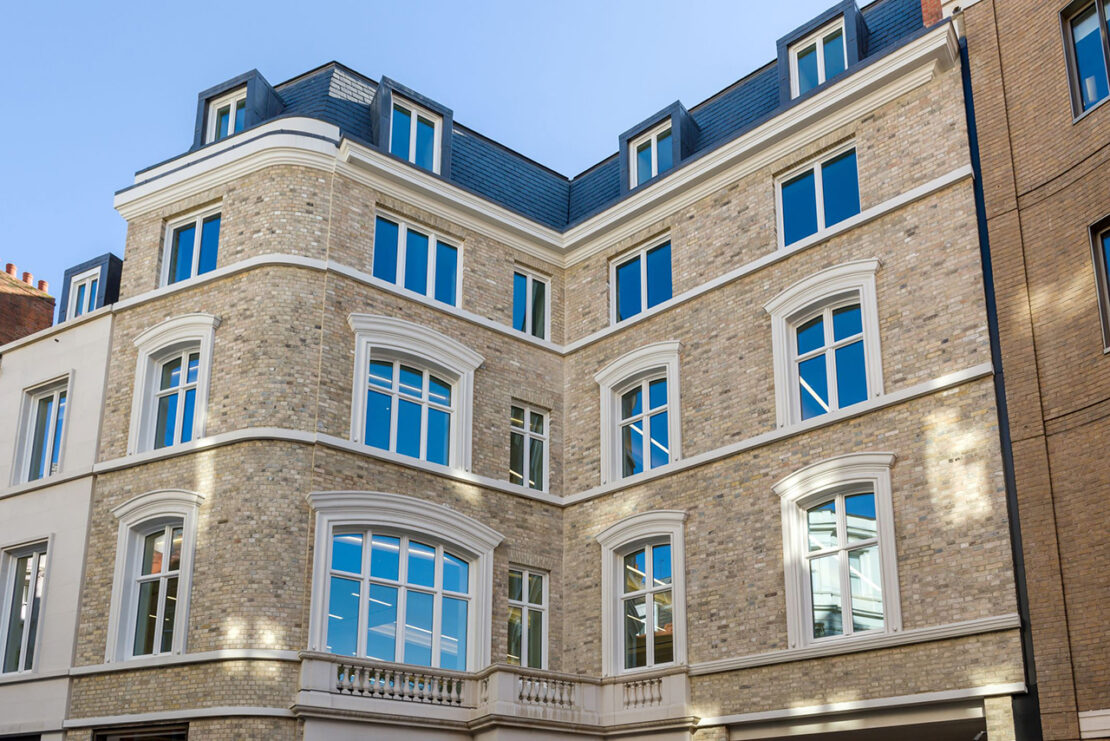

London’s Premier Address Deserves Premier Fenestration
CASE STUDY
Stud Farm Warrington
Technical specifications
Performance and technical specifications are both available for our Pivot Windows.
Performance
| Thermal | As Standard | Best |
|---|---|---|
| U-Value | 1.4 | 0.9 |
| Energy Rating | B | A+ |
| g-Value | 71% | As Required |
| LT | 81% | As Required |
| Acoustic | ||
|---|---|---|
| Rw | 30dB | 41dB |
| Weather | ||
|---|---|---|
| Classification | 2000 (BS6375 Part 1) | |
| Air | Class 4 (EN 12207:2000) | |
| Wind | Class 7A (EN 12208:2000) | |
| Water | Class C5 (EN 12210:2000 Class C5) | |
| Operation & Strength | ||
|---|---|---|
| Classification | Pass (BS6375 Part 2) | |
| Security | ||
|---|---|---|
| PAS 24 / Part Q/ Secured by Design | Pass (as option) | |
| Sustainability | ||
|---|---|---|
| FSC Chain of Custody | Yes | |
CAD Drawings
| Design | Download Options | ||
|---|---|---|---|
| P1 - Pivot window | |||
NBS Data
| Design | Download Options | ||
|---|---|---|---|
| P1 - Pivot | |||
Performance
| Thermal | As Standard | Best |
|---|---|---|
| U-Value | 1.4 | 0.8 |
| Energy Rating | B | A++ |
| g-Value | 71% | As Required |
| LT | 81% | As Required |
| Acoustic | ||
|---|---|---|
| Rw | 30dB | 41dB |
| Weather | ||
|---|---|---|
| Classification | 2000 (BS6375 Part 1) | |
| Air | Class 4 (EN 12207:2000) | |
| Wind | Class 7A (EN 12208:2000) | |
| Water | Class C5 (EN 12210:2000 Class C5) | |
| Operation & Strength | ||
|---|---|---|
| Classification | Pass (BS6375 Part 2) | |
| Security | ||
|---|---|---|
| PAS 24 / Part Q | Pass (as option) | |
| Sustainability | ||
|---|---|---|
| FSC Chain of Custody | Yes | |
CAD Drawings
Sorry, no CAD Drawings are available for this product yet, please contact us.
NBS Data
Sorry, no NBS Data is available for this product yet, please contact us.
Looking for other styles? Browse our range
Find out more about the range of timber windows and doors we manufacture.
Pivot Windows: Frequently Asked Questions
Are timber pivot windows energy efficient?
Yes, George Barnsdale pivot windows are designed with efficiency in mind. They incorporate quality glazing and timber frames that provide excellent insulation, helping to reduce energy loss and help you stay cosy indoors during the cold, winter months.
These features not only boost the window’s thermal performance but also contribute to lowering energy costs. Explore our range of energy-efficient windows and doors, designed to upgrade your property and improve sustainability today.
Where are pivot windows commonly used?
Pivot windows are ideal for both residential and commercial properties. They are particularly popular in modern architectural designs and areas where easy cleaning access is essential.
How long do timber pivot windows last?
When properly maintained, George Barnsdale’s timber pivot windows can last for decades. They are crafted from high-quality, sustainable timber and finished withstanding weathering.
What are the benefits of pivot windows?
Our timber pivot windows offer:
- Improved ventilation due to full rotation.
- Easy cleaning from inside the property.
- A modern and sleek aesthetic.
- Space-saving functionality for smaller areas.
Are timber pivot windows suitable for large openings?
Yes, timber pivot windows are a perfect choice for larger openings. Our product’s unique design allows the weight of the window to be evenly distributed across the pivot, making it easy to operate, even in larger dimensions.
Do timber pivot windows require regular maintenance?
Timber pivot windows from George Barnsdale are treated with advanced coatings to resist weathering. Regular cleaning and occasional re-coating will ensure they remain in excellent condition for many years.
For more information on keeping your timber pivot windows in top condition, see our repairs and maintenance page.
