Stud Farm Warrington

Project description

George Barnsdale were recently asked to look at a project to replace the existing fenestration with new timber windows and doors for Stud Farm Warrington.

Located in a conservation area in Warrington the barn conversion needed the existing doors and windows replaced after a previous installation by a different joiner and installer had not gone so well .

The mix of storm-proof casement windows, circular pivot window, entrance and French doors were fully designed by George Barnsdale, this included the front door layout.

Working with the client to approve the designs, time and money was saved in the process. The client went with George Barnsdale due to our on-site service guarantees and paint finish.

Key details

Windows

Storm-proof Casement—Manufactured from engineered Redwood (Softwood) Flush Cill, Hardware-Foundry Collection Black, Double glazed unit (4/16/4) with 21mm plant on Astragal bar (Georgian Bar design) , Painted in RAL 9016 White

Circular Pivot window— Manufactured from engineered Redwood (Softwood) Hardware-Pivot collection in Silver with Night Vent Handle, Double glazed, Painted in RAL 9016 White

Doors

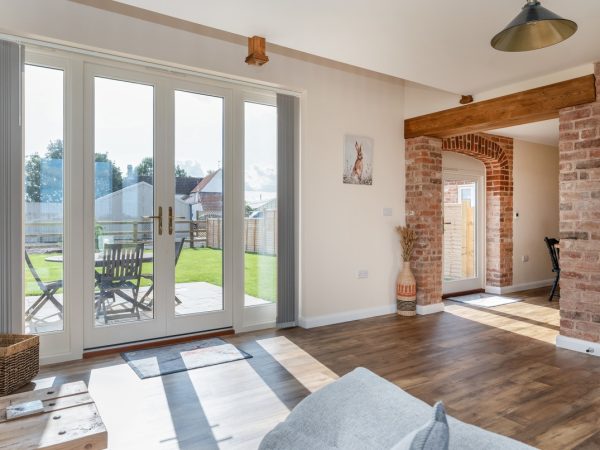

French Doors– Door frame manufactured from engineered redwood (Softwood) but Sash/slab manufactured from Grandis (Hardwood) , Hardware -Foundry collection black, Double glazed unit (4/20/4) with 21mm plant on Astragal bar (Georgian Bar Design), Painted in RAL 9016 White

Entrance Door-Door frame & Side lights manufactured from engineered redwood (Softwood) but door Sash/slab manufactured from Grandis (Hardwood) , Hardware -Foundry collection black, Double glazed unit with 21mm plant on Astragal bar (Georgian Bar Design), Painted in RAL 9016 White

Client – Private
